| Brand Name: | Haicheng |
| Model Number: | M120K,M120D |
| MOQ: | 10PCS |
| harga: | Negociated |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 100000PCS Per Bulan |
Permintaan tinggi Antimony Impregnated Carbon Graphite Bushings Bearing Silicone
Deskripsi produk:
Bantalan grafit karbon yang dapat dilumasi sendiri & bushing karbon sangat ideal untuk aplikasi di mana pelumas normal tidak dapat digunakan.Bahkan aplikasi suhu tinggi tidak menjadi masalah untuk karbon grafit.
Parameter teknis
| Kategori | Model | Hamil | Shore Hardess | Kekuatan Flexural | Kekuatan Kompresi | Porositas | Densitas Bulk | Koefisien ekspansi termal | Temp. | |||
| ≥ | `X | ≥MPa | `X | ≥MPa | `X | ≤% | g/cm3 | 10-6/°C | °C | |||
| Grafit | M120 | - | 60 | - | 25 | - | 81 | - | 18 | 1.6 | 4 | 350 |
| M154 | - | 40 | - | 20 | - | 40 | - | 28 | 1.42 | - | 350 | |
| M254 | - | 10 | - | 25 | - | 45 | - | 25 | 1.65 | 3.4 | 450 | |
| Graphalloy babbitt yang diimpregnasikan | M120B | Paduan Babbitt | 50 | 80 | 50 | 70 | 130 | 180 | 10 | 2.3 | 5.5 | 200 |
| Grafit karbon resin yang terimpregnasikan | M106H | Epoxy resin | 75 | 90 | 51 | 60 | 180 | 190 | 1.0 | 1.62 | 4.8 | 200 |
| M238H | 40 | 55 | 39 | 50 | 78 | 110 | 1.0 | 1.85 | 4.5 | 250 | ||
| M255H | 40 | 50 | 34 | 45 | 78 | 90 | 1.0 | 1.8 | 4.5 | 200 | ||
| M106K | Furan resin | 80 | 95 | 55 | 65 | 200 | 210 | 2.0 | 1.62 | - | 200 | |
| M120K | 75 | 95 | 50 | 60 | 190 | 195 | 2.0 | 1.7 | 200 | |||
| M154K | 60 | 35 | 70 | 6.0 | 1.6 | 200 | ||||||
| M158K | 80 | 90 | 54 | 60 | 200 | 210 | 1.2 | 1.65 | - | 200 | ||
| Grafit karbon logam yang disemprotkan | M106D | Paduan antimon | 75 | - | 55 | 65 | 170 | 190 | 3 | 2.2 | 5.0 | 500 |
| M120D | 70 | - | 50 | 60 | 140 | 160 | 3 | 2.2 | 5.0 | 500 | ||
| M254D | 35 | - | 35 | - | 65 | - | 3 | 2.2 | 4.5 | 500 | ||
| M120P | Paduan tembaga | 65 | - | 65 | - | 200 | - | 3 | 2.4 | - | 400 | |
| Grafit karbon kaca yang disemprotkan | M106R | Kaca | 110 | - | 75 | - | 210 | - | 1.5 | 1.9 | 4.67 | 600 |
| M120R | 95 | - | 57 | - | 190 | - | 1.5 | 1.9 | 4.67 | 600 | ||
| M254R | 65 | - | 55 | - | 100 | - | 1.5 | 1.9 | - | 600 | ||
| M262R | 75 | - | 48 | - | 138 | - | 1.5 | 1.9 | - | 600 | ||
| Grafit yang dipencet panas | M353 | - | 45 | - | 45 | - | 120 | - | 1.0 | 1.75 | - | 100 |
| M352 | - | 35 | - | 35 | - | 80 | - | 1.0 | 1.75 | - | 100 | |
| M356 | - | 50 | - | 50 | - | 140 | - | 1.0 | 1.75 | - | 100 | |
| M357 | - | 40 | - | 40 | - | 80 | - | 1.0 | 1.75 | 9.0 | 100 | |

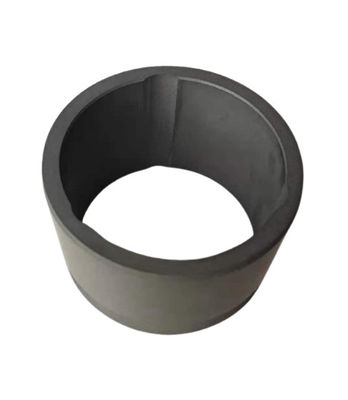

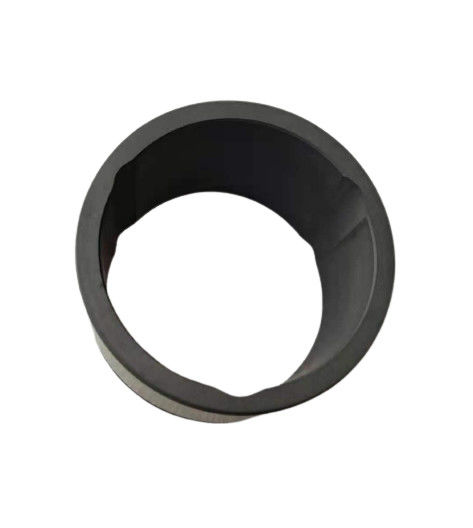

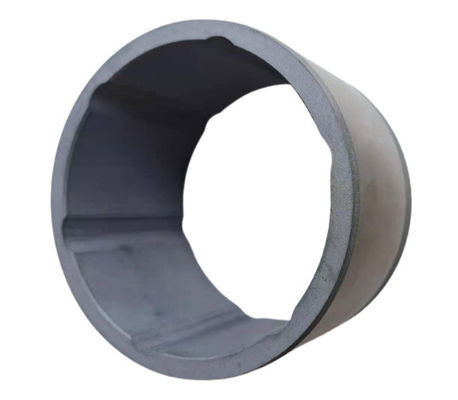

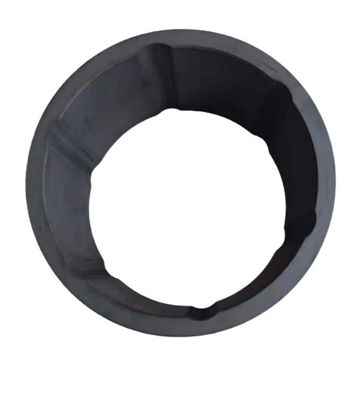

Foto untuk produk dan pabrik:
Semua barang dikemas dengan aman dan aman untuk pengiriman danakan dikirim melalui pengiriman darat standar.
