| Brand Name: | Haicheng |
| Model Number: | M120D |
| MOQ: | 10 BUAH |
| harga: | negotiable |
| Payment Terms: | T/T,L/C, D/A, D/P, |
| Supply Ability: | 100000 pcs per bulan |
Self-Lubricating Carbon Graphite Bearings Dan Bushing Aplikasi Serbaguna
Kinerja Teknis untuk Material
| Kategori | Model | Saya hamil | Shore Hardess | Kekuatan Lentur | Kekuatan Kompresif | Porositas | Kepadatan Massal | Koefisien muai panas | Suhu. | |||
| ≥ | `X | ≥MPa | `X | ≥MPa | `X | ≤% | g/cm23 | 10-6/℃ | ℃ | |||
| Grafit | M120 | - | 60 | - | 25 | - | 81 | - | 18 | 1.6 | 4 | 350 |
| M154 | - | 40 | - | 20 | - | 40 | - | 28 | 1.42 | - | 350 | |
| M254 | - | 10 | - | 25 | - | 45 | - | 25 | 1.65 | 3.4 | 450 | |
| Grafit karbon resin yang diresapi | M106H | Resin epoksi | 75 | 90 | 51 | 60 | 180 | 190 | 1.0 | 1.62 | 4.8 | 200 |
| M238H | 40 | 55 | 39 | 50 | 78 | 110 | 1.0 | 1.85 | 4.5 | 250 | ||
| M255H | 40 | 50 | 34 | 45 | 78 | 90 | 1.0 | 1.8 | 4.5 | 200 | ||
| M106K | Damar Furan | 80 | 95 | 55 | 65 | 200 | 210 | 2.0 | 1.62 | - | 200 | |
| M120K | 75 | 95 | 50 | 60 | 190 | 195 | 2.0 | 1.7 | 200 | |||
| M154K | 60 | 35 | 70 | 6.0 | 1.6 | 200 | ||||||
| M158K | 80 | 90 | 54 | 60 | 200 | 210 | 1.2 | 1.65 | - | 200 | ||
| Grafit karbon logam yang diresapi | M106D | Paduan antimon | 75 | - | 55 | 65 | 170 | 190 | 3 | 2.2 | 5.0 | 500 |
| M120D | 70 | - | 50 | 60 | 140 | 160 | 3 | 2.2 | 5.0 | 500 | ||
| M254D | 35 | - | 35 | - | 65 | - | 3 | 2.2 | 4.5 | 500 | ||
| M120P | Paduan tembaga | 65 | - | 65 | - | 200 | - | 3 | 2.4 | - | 400 | |
| Grafit karbon kaca yang diresapi | M106R | Kaca | 110 | - | 75 | - | 210 | - | 1.5 | 1.9 | 4.67 | 600 |
| M120R | 95 | - | 57 | - | 190 | - | 1.5 | 1.9 | 4.67 | 600 | ||
| M254R | 65 | - | 55 | - | 100 | - | 1.5 | 1.9 | - | 600 | ||
| M262R | 75 | - | 48 | - | 138 | - | 1.5 | 1.9 | - | 600 | ||

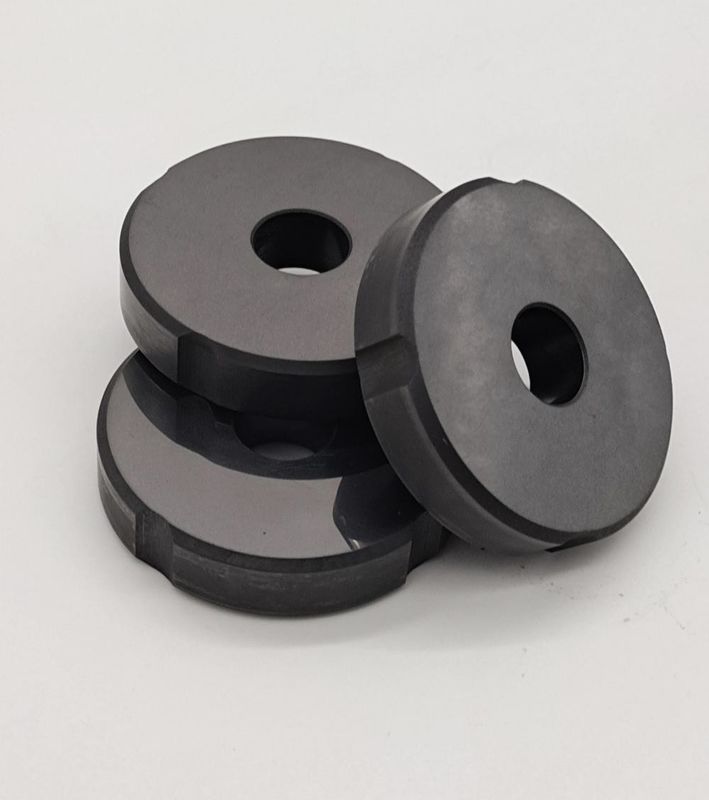

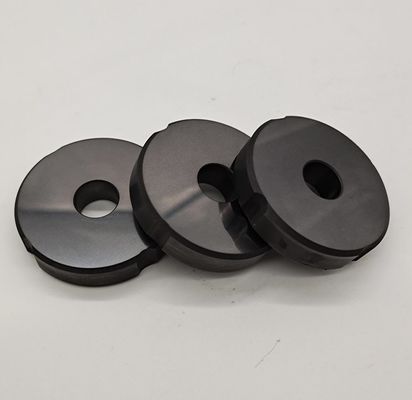

Foto Produk
