| Brand Name: | HAICHENG |
| Model Number: | NA |
| MOQ: | 10 BUAH |
| harga: | negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 100000 pcs per bulan |

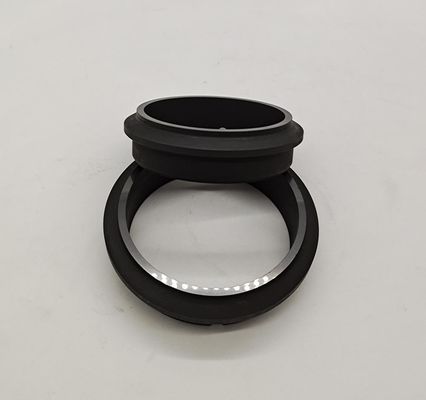

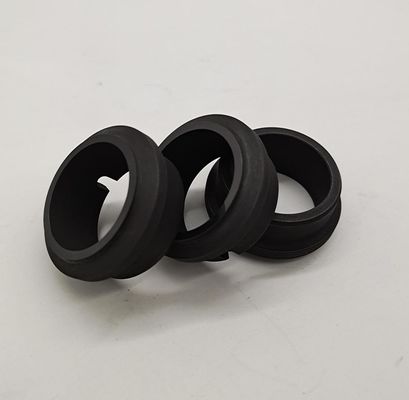

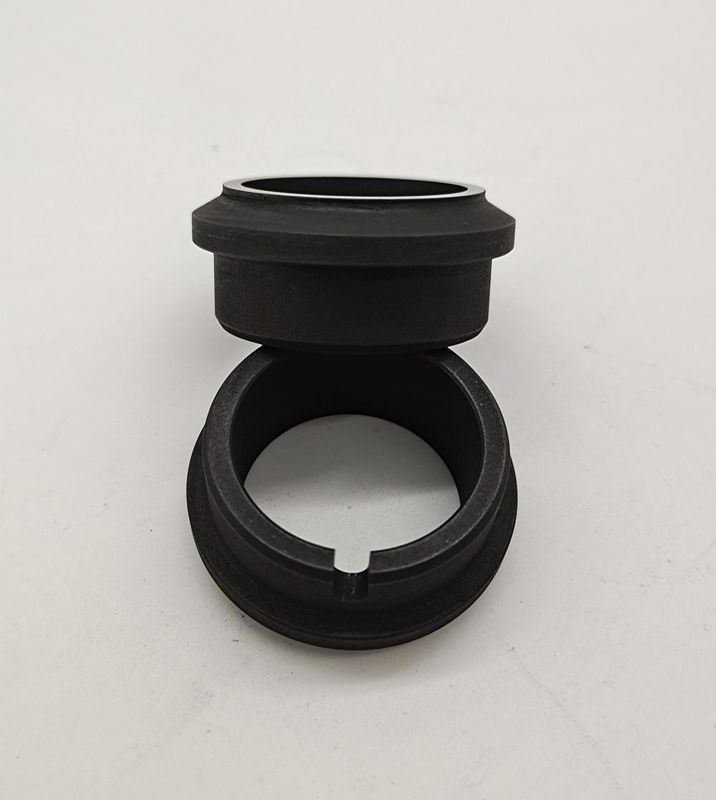

Segel Grafit Karbon Murni Tinggi - Produsen Bersertifikat ISO
Material karbon dan grafit telah membuka area aplikasi yang luas untuk seal ring.Bahan-bahan ini menggabungkan banyak keunggulan unik dan memungkinkan aplikasi di bawah kondisi terberat.
| Kategori | Model | Saya hamil | Shore Hardess | Kekuatan Lentur | Kekuatan Kompresif | Porositas | Kepadatan Massal | Koefisien muai panas | Suhu. | |||
| ≥ | `X | ≥MPa | `X | ≥MPa | `X | ≤% | g/cm3 | 10-6/℃ | ℃ | |||
| Grafit | M120 | - | 60 | - | 25 | - | 81 | - | 18 | 1.6 | 4 | 350 |
| M154 | - | 40 | - | 20 | - | 40 | - | 28 | 1.42 | - | 350 | |
| M254 | - | 10 | - | 25 | - | 45 | - | 25 | 1.65 | 3.4 | 450 | |
| Grafit karbon resin yang diresapi | M106H | Resin epoksi | 75 | 90 | 51 | 60 | 180 | 190 | 1.0 | 1.62 | 4.8 | 200 |
| M238H | 40 | 55 | 39 | 50 | 78 | 110 | 1.0 | 1.85 | 4.5 | 250 | ||
| M255H | 40 | 50 | 34 | 45 | 78 | 90 | 1.0 | 1.8 | 4.5 | 200 | ||
| M106K | Damar Furan | 80 | 95 | 55 | 65 | 200 | 210 | 2.0 | 1.62 | - | 200 | |
| M120K | 75 | 95 | 50 | 60 | 190 | 195 | 2.0 | 1.7 | 200 | |||
| M154K | 60 | 35 | 70 | 6.0 | 1.6 | 200 | ||||||
| M158K | 80 | 90 | 54 | 60 | 200 | 210 | 1.2 | 1.65 | - | 200 | ||
| Grafit karbon logam yang diresapi | M106D | Paduan antimon | 75 | - | 55 | 65 | 170 | 190 | 3 | 2.2 | 5.0 | 500 |
| M120D | 70 | - | 50 | 60 | 140 | 160 | 3 | 2.2 | 5.0 | 500 | ||
| M254D | 35 | - | 35 | - | 65 | - | 3 | 2.2 | 4.5 | 500 | ||
| M120P | Paduan tembaga | 65 | - | 65 | - | 200 | - | 3 | 2.4 | - | 400 | |
| Grafit karbon kaca yang diresapi | M106R | Kaca | 110 | - | 75 | - | 210 | - | 1.5 | 1.9 | 4.67 | 600 |
| M120R | 95 | - | 57 | - | 190 | - | 1.5 | 1.9 | 4.67 | 600 | ||
| M254R | 65 | - | 55 | - | 100 | - | 1.5 | 1.9 | - | 600 | ||
| M262R | 75 | - | 48 | - | 138 | - | 1.5 | 1.9 | - | 600 | ||
| Grafit yang ditekan panas | M353 | - | 45 | - | 45 | - | 120 | - | 1.0 | 1.75 | - | 100 |
| M352 | - | 35 | - | 35 | - | 80 | - | 1.0 | 1.75 | - | 100 | |
| M356 | - | 50 | - | 50 | - | 140 | - | 1.0 | 1.75 | - | 100 | |
| M357 | - | 40 | - | 40 | - | 80 | - | 1.0 | 1.75 | 9.0 | 100 | |
Ketahanan Kimia Bahan Grapshite Karbon Mekanik
| Medium | Fraksi Massa % | Grafit Karbon Murni | Diresapi Resin Karbon Grafit | Grafit Karbon Logam Diresapi | Grafit Karbon Ditekan Panas | |||||
| Fenoik | Epoksi | Furan | Antimon | Paduan Babbitt | Paduan Aluminium | Paduan Tembaga | ||||
| Asam hidroklorik | 50 | + | 0 | + | 0 | ~ | ~ | ~ | ~ | 0 |
| Asam belerang | 50 | + | 0 | + | 0 | ~ | ~ | ~ | ~ | 0 |
| Asam belerang | 98 | + | 0 | ~ | + | ~ | ~ | ~ | ~ | 0 |
| Asam sendawa | 50 | 0 | 0 | 0 | 0 | ~ | ~ | ~ | ~ | 0 |
| Asam sendawa | pekat | ~ | ~ | ~ | ~ | ~ | ~ | ~ | ~ | ~ |
| Asam asetat | 36 | + | + | ~ | 0 | ~ | 0 | 0 | 0 | 0 |
| Air laut | ~ | + | 0 | + | 0 | ~ | + | 0 | 0 | 0 |
| Benzena | 100 | + | + | 0 | + | + | + | + | + | + |
| Amonia | 10 | + | 0 | + | + | + | + | + | ~ | 0 |
| Aseton | 100 | + | 0 | 0 | + | + | 0 | + | + | 0 |
| Urea | 70 | + | + | + | + | + | 0 | + | ~ | 0 |
| Oli motor | ~ | + | 0 | + | + | + | 0 | + | + | + |
| Bensin | ~ | + | 0 | 0 | + | + | 0 | + | + | + |
| Catatan: | + stabil, 0 normal, ~ tidak stabil | |||||||||
